VLLRO Groundwater Purification Solution for Rural Africa | Integrated RO Water Purifier for Villages of 20-30 Households

1. Drinking Water Pain Points in Rural Africa & Targeted Integrated Water Purification Equipment

Most rural African communities rely on shallow groundwater, which commonly contains excessive sediment, high salinity (brackish water), bacteria, yellow discoloration and odd odors. Shortage of professional maintenance staff and difficult cross-border procurement & transportation of consumables bring severe hidden dangers to drinking water safety.

This small-scale drinking water upgrading system is customized for African villages with 20–30 households. The daily water consumption standard is 100L per household, with a total 4-ton water storage capacity. It adopts an integrated treatment process: quartz sand filtration + activated carbon filtration + cartridge security filtration + single-stage reverse osmosis + UV sterilization. The produced water meets WHO drinking water standards, perfectly fitting groundwater treatment demands of rural Africa.

2. Locally Optimized Water Treatment Process for Africa (1 Ton/Hour RO Equipment)

Complete water treatment flow: Deep well water intake → Quartz sand filter → Activated carbon filter → 5μm security filter → Single-stage RO system → 4-ton clean water tank → UV sterilizer → Variable-frequency constant pressure water supply for households

1.

Quartz Sand Filter: 2m³/h processing capacity with automatic daily backwashing to intercept sediment and suspended solids, ideal for highly turbid groundwater in Africa. Thickened fiberglass tank with sun protection cover for high-temperature resistance under intense sunlight.

2.

3.

Activated Carbon Filter: High iodine value coconut shell carbon removes color, humus and strange odors, extending the service life of RO membranes. Filter media only needs replacement once a year to cut cross-border restocking frequency.

4.

5.

5μm Security Filter: PP filter cartridges serve as pre-protection to block fine particles and prevent RO membrane scratches. Compact cartridges are suitable for mass sea transportation via containers.

6.

7.

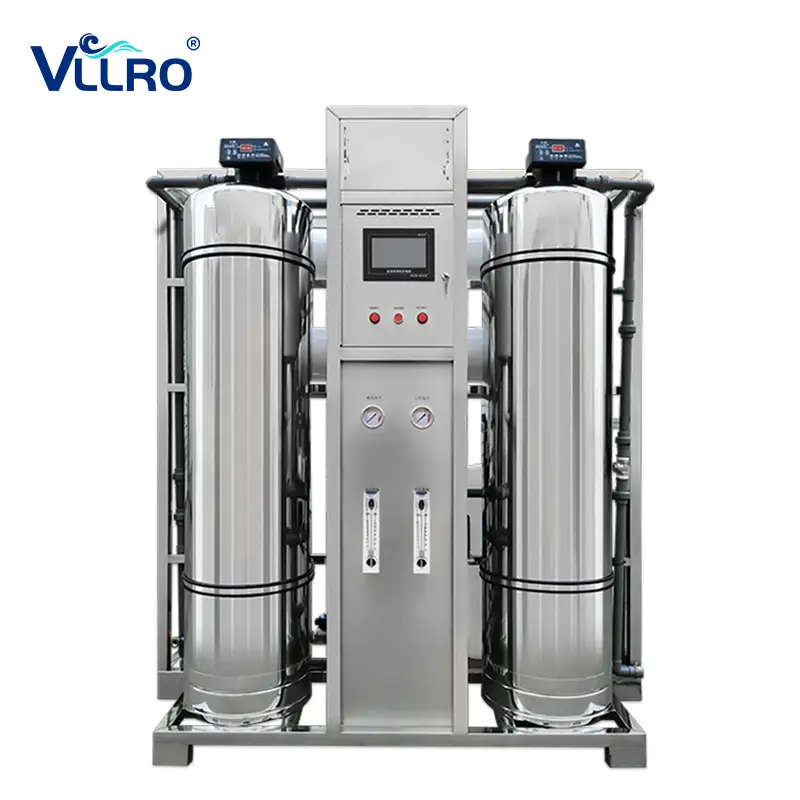

1 Ton/Hour Single-Stage RO Main Unit: Initial salt rejection rate reaches 98% with 50%–60% water recovery, efficiently desalinating brackish groundwater. Automatic low-pressure membrane flushing runs every 24 hours; solid scale inhibitor avoids leakage and deterioration during long ocean shipping.

8.

9.

55W UV Sterilization System: 2m³/h throughput with physical disinfection, eliminating the trouble of purchasing and storing chemical disinfectants in remote villages. Low power consumption supports photovoltaic power supply.

10.

11.

4-Ton Water Storage & Variable-Frequency Water Supply: Two sets of 2-ton insulated stainless steel tanks reserve water for power outages and peak water use. The 0.75KW variable-frequency pump delivers stable water pressure when multiple households draw water simultaneously.

12.

3. Two Core Supporting Upgrades Specially Designed for Rural Africa

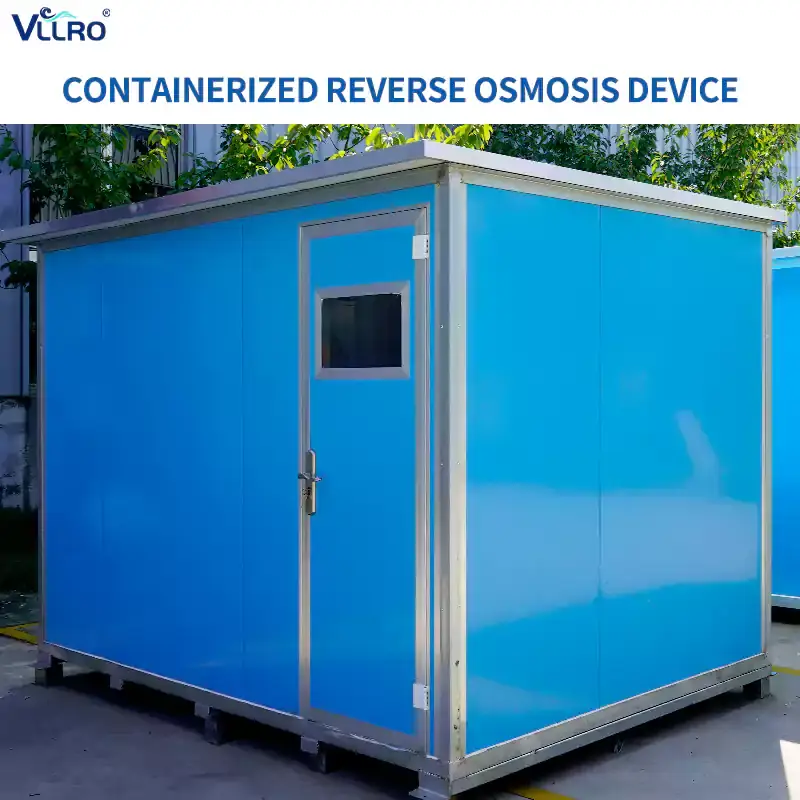

3.1 Modular Transport & Easy Installation

The whole equipment is split into modular components to fit standard shipping containers. Pipes and frames are pre-assembled in advance. Local workers can finish installation within 3 days with technical guidance. A steel sunshade and rain shelter is matched to resist intense sunlight and heavy African rains.

3.2 Low-Maintenance Localized Supporting System

Half-year supply of consumables including filter cartridges, UV lamps and sealing parts are delivered together with the machine. Bilingual (English & French) illustrated operation manuals are provided. Local villagers can complete daily inspections and cartridge replacement after simple training, no professional water treatment technicians required. Concentrated RO wastewater and filter backwashing water can be reused for farm irrigation to maximize water utilization amid Africa’s water scarcity.

4. Complete Equipment List (For Single Village of 20–30 Households)

Deep well pump, 1252 fiberglass quartz sand & activated carbon tanks, Runxin automatic backwash valves, 20-inch 3-core security filter, 1m³/h RO main unit (4 pieces of 4040 Huitong RO membranes + 1.8KW high-pressure pump), 2×2-ton insulated stainless steel water tanks, UV sterilizer, variable-frequency water supply pump, antiscalant dosing device, full set of online pressure gauges and flow meters, stainless steel automatic control frame, anti-corrosion UPVC pipe fittings, and full set of spare consumables.

5. Core Advantages of Rural African Water Purification Projects

1. Mature rural water purification technology with abundant domestic project cases, perfectly compatible with brackish groundwater in Africa;

2. High temperature resistance, anti-corrosion and sun-proof design; dual power supply (mains + photovoltaic) solves frequent power outages;

3. Fully automatic operation with bilingual simple control interface, ultra-low maintenance threshold;

4. Modular containerized delivery and centralized consumable shipment reduce cross-border logistics costs;

5. Physical UV disinfection without reliance on chemical disinfectants, suitable for remote villages
